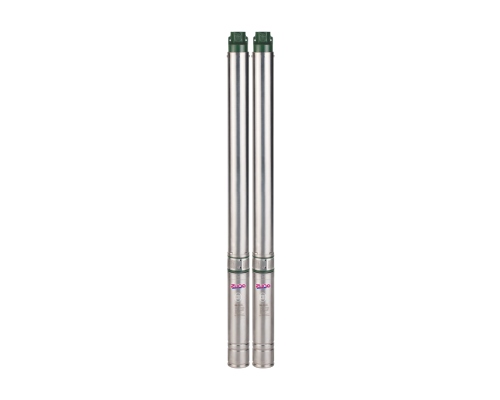

CRI 100mm Borewell Submersible Pumps Zuno Series

CRI 100mm Borewell Submersible Pumps Zuno Series

CRI 100mm Borewell Submersible Pumps Zuno Series

C.R.I. Zuno 100 mm Borewell submersible motors are pre-filled with non-toxic liquid for best performance in low voltage and high efficiency. The pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water. The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. Built-in check valve prevents back flow and reduces the risk of water hammering.

SKU 100SBPZS Category Tags , , , , , , Brand:

C.R.I. Zuno 100 mm Borewell submersible motors are pre-filled with non-toxic liquid for best performance in low voltage and high efficiency. The pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water. The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. Built-in check valve prevents back flow and reduces the risk of water hammering.



APPLICATION

Agricultural & irrigation Food processing industry Irrigation Fountains Fire fighting system De-Salination plants Sprinkler system



FEATURE

  • Motor portion covered with corrosive resistance Stainless steel (SS 304) shell
  • More durable and hygiene
  • High operating efficiency
  • Specially designed angular contact bearing to withstand high axial thrust load
  • Easy removal of stator ensures service feasibility
  • Designed for wide voltage operation
  • Non-toxic pre filled liquid motor ensures low voltage performance



SPECIFICATION

Power Range 0.37 kW – 2.2 kW (0.5 HP – 3 HP)
Version Single phase 230 V; Three phase 415V, 50Hz, AC Supply
Maximum Total Head 220 metre
Maximum Flow Rate 7 lps (25.2 m³/h)



MATERIAL OF CONSTRUCTION

Part Name Material
Impeller Noryl
Diffuser Chamber Noryl
Pump Shaft SS 304
Shaft SS 431
Motor Base Cast Iron
