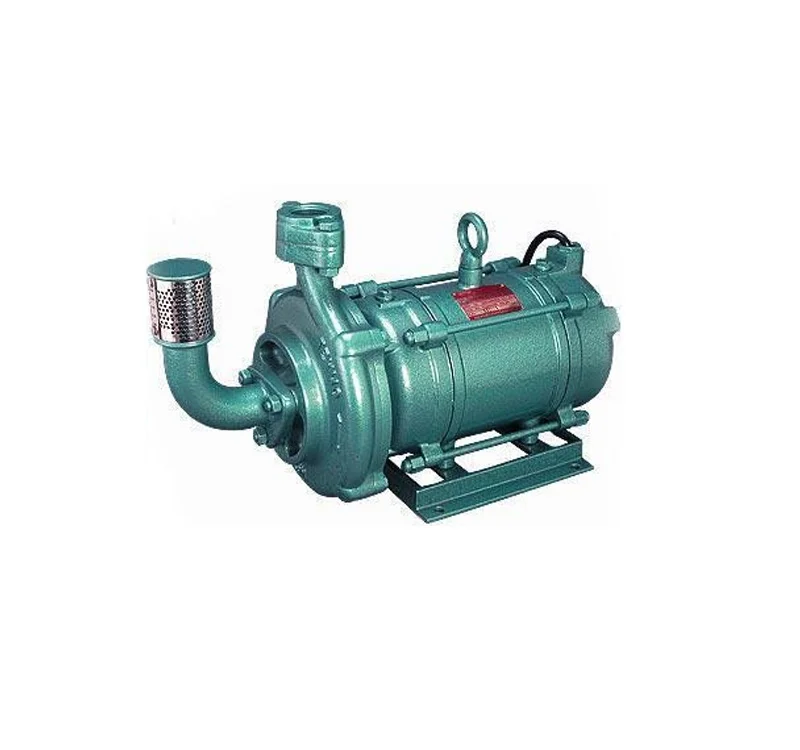

Suguna Openwell Submersible Monobloc – Horizontal

Suguna Openwell Submersible Monobloc - Horizontal

Suguna Openwell Submersible Monobloc – Horizontal

SKU OSMH Category Submersible Pumps Tag sugunapumps Brand: Suguna Pump

FEATURES

Motor & Pump Casing are made out of high grade cast iron material
S.S. Shaft and cast iron impellers
Two water Lubricated carbon bearings used for longer life and smooth operation
2880 RPM – 415V, 50 Hz 3 phase supply water cooled motor

APPLICATIONS

Can also be installed inside a sump or in hanging position inside deep openwells
High head & high discharge applications
Agriculture lift irrigation, multi stored building, Hospitals etc.,

PERFORMANCE CHART

MODEL	HP	DLYSIZE(MM)	TOTAL HEAD IN METERS
			6	10	14	16	20	22	26	30	34	36	38	40	44	48	54	56
			DISCHARGE IN LPM
SSM 12	3	50	720	620	530	490	390	270
SSM 12H	3	50					370	320	210	150
SSM 14	3	65	1010	870	720	620	430	270
SSM 15	3	75	1680	870	540	270
SSM 22	5	50				1110	890	800	590	270
SSM 22 H	5	50	1080	1040	950	900	790	750	660	590	340	230
SSM 24	5	65	1430	1230	1080	1000	850	830	570	270
SSM 25	5	75	1980	1620	1130	900	210
SSM 28	6	65	1280	1230	1140	1080	960	890	680	580	290
SSM 31	7.5	50				1200	1080	1020	900	720	630	560	320	210
SSM 31H	7.5	50				900	860	830	780	760	690	640	580	510	360
SSM 32	7	65			1770	1650	1460	1380	1110	930	600	360
SSM 33	7.5	75		1990	1890	1770	1590	1020	370
SSM 42	10	50						1310	1220	1180	1050	1020	980	830	470
SSM 42H	10	50								1180	1130	1100	1050	1000	890	740	290
SSM 43	10	65				1440	1380	1340	1230	1180	1080	990	900	750
SSM 44	10	75			1900	1820	1640	1540	1340	1230	890	460	210
SSM 52	12.5	65									1520	1470	1420	1320	1260	1150	900	620
SSM 63	15	75							2160	1970	1620	1540	1470	1320	900	410
