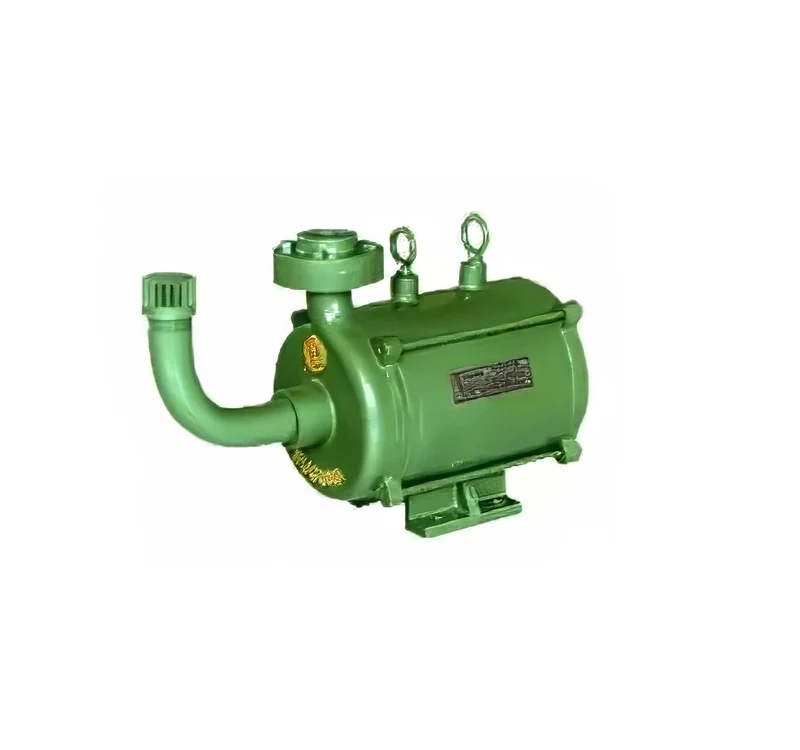

Suguna Single Phase Openwell Submersible Mono Block Pumps
Suguna Single Phase Openwell Submersible Mono Block Pumps
PERFORMANCE DATA
| MODEL | HP | DELIVERY SIZE (MM) | TOTAL HEAD IN METERS | |||||||||||||||
| METER | 9 | 10 | 12 | 14 | 15 | 18 | 21 | 23 | 25 | 27 | 28 | 30 | 32 | 36 | 38 | |||
| 30 | 33 | 40 | 47 | 50 | 60 | 70 | 77 | 83 | 90 | 93 | 100 | 107 | 120 | 127 | ||||
| DISCHARGE IN LPM | ||||||||||||||||||
| SSM 050 | 0.5 | 25 | 162 | 117 | 80 | |||||||||||||
| SSM 100 | 1.0 | 25 | 194 | 183 | 164 | 148 | 130 | 93 | 72 | |||||||||
| SSM 102 | 1.0 | 50 | 492 | 432 | 270 | |||||||||||||
| SSM 150 | 1.5 | 40 | 266 | 258 | 240 | 223 | 205 | 178 | 159 | 111 | ||||||||
| SSM 153 | 1.5 | 50 | 438 | 426 | 396 | 372 | 360 | 288 | 210 | |||||||||
| SSM150H | 1.5 | 25 | 153 | 147 | 132 | 114 | 66 | 33 | ||||||||||
| SSM 200 | 2.0 | 50 | 420 | 378 | 324 | 275 | 225 | 135 | ||||||||||
